REDefining Smart Building

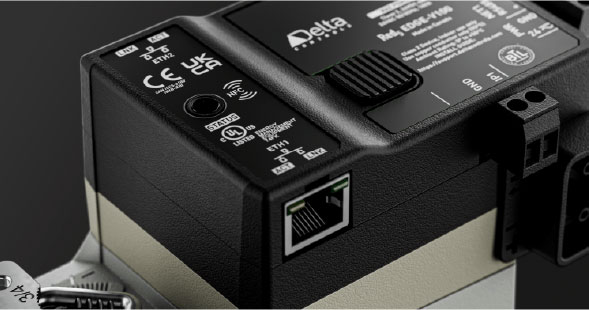

The Red5-EDGE-V440 and V100 are fully integrated, programmable, and IoT based Native BACnet VAV controllers. Both support a BACnet Ethernet CYP daisy chain with fail-over bypass technology to deliver a fast, reliable BMS network while providing unparalleled cyber security.
The precision analog actuator control provides improved accuracy at lower air flows that allows finer tuning of the system, generating significant energy savings and lower building controls maintenance costs.
With the Proviso app, facility personnel and other users can adjust network settings allowing them to streamline the connection and configuration process.
Key Features
- Selectable, fully functional, editable, built-in Guideline 36 and VAV application databases so you can quickly meet your project’s specification and ESG and sustainability goals
- Fully integrated within a Belimo Actuator footprint for unparalleled speed and ease of installation
- Full daisy chain Ethernet/IP with bypass technology supporting BACnet SC for maximum cybersecurity and network reliability
- Full IoT controller with MQTT and onboard Python-based analytics capability
- Easily retrofit and refresh your system minimizing CAPEX through backwards compatibility with legacy infrastructure
Technology Driven Solutions
Meet Project Spec,
ESG & Sustainability Goals
Unparalleled Speed
Ease of Installation
MQTT + Onboard Python-Based Analytics
Easy Retrofits with Minimum CAPEX
Detailed Features
- V440: 4 Software Selectable, Universal External Inputs (10K, 5VDC, 10VDC)
- V440: 4 Universal Outputs
- V100: 1 External 10K Input
- Standard Actuator Position Feedback
- Bi-directional, Zero Drift, 0-2”WC (0-500Pa) Differential Pressure Sensor
- Fully Programmable in GCL+ for control applications
- Ethernet Daisy Chain with Bypass
- Native BACnet Building Controller (B-BC)
- BACnet/IP, BACnet Ethernet main LAN communications
- Built-in, Selectable, and Editable ASHRAE Guideline 36 application databases
- Supports Delta LINKnet smart network sensors
- Supports Red5Bus I/O expansion modules
- MQTT support
- Direct mount housing integrated controller, Belimo actuator, and airflow sensor into a single package for easy, cost-effective installation
- Network configuration via NFC on the Proviso App
- LED indicator and SCAN status
- Support for up to 5 Modbus RTU devices included
- 1 USB C port
- Connectors: Removable screw-type terminal connectors
- Wiring Class: NEC Clas 2 / SELV
- Tubing: Flow sensor tubing must be 5/32 in. inside diameter
