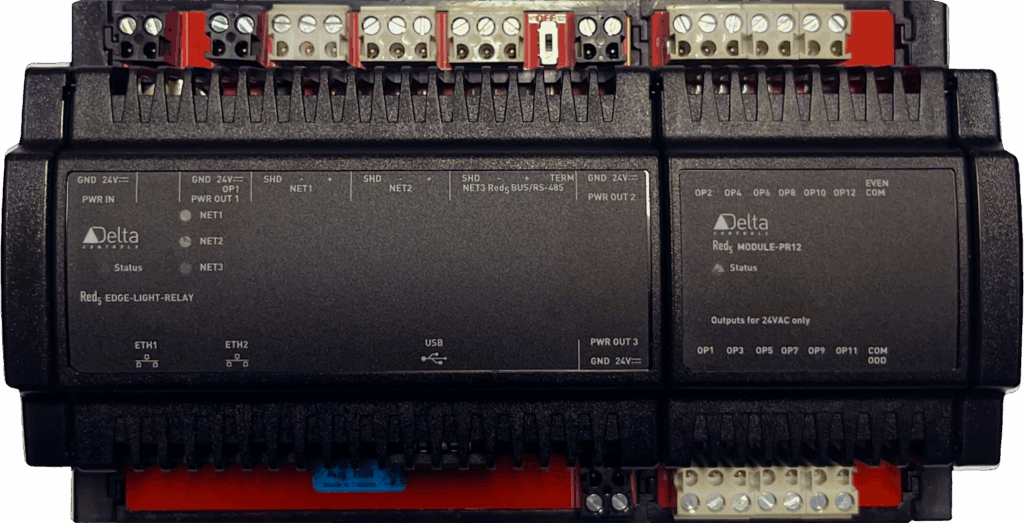

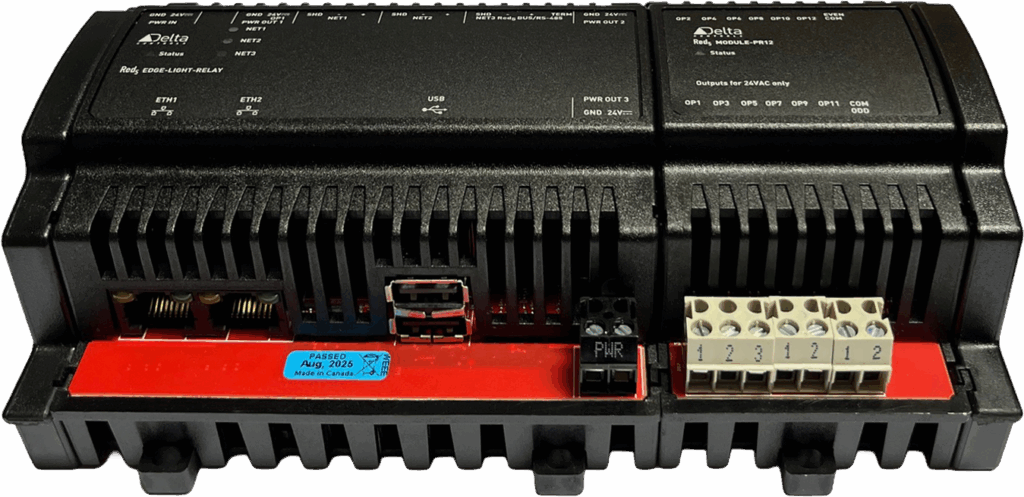

The Red5-EDGE-LIGHT-RELAY is a fully programmable, native BACnet lighting controller that forms the core of the Red5 lighting ecosystem. Designed to power and control PR-12 relay modules, Red5 I/O modules, gateway modules, and O3-HUB devices, it delivers a modern, scalable, and BAS-integrated approach to lighting control. With modular connectivity, dual Ethernet ports, and advanced diagnostic capabilities, the Red5-EDGE-LIGHT-RELAY provides the foundation for flexible lighting architectures in both retrofit and new construction environments.
Fully Programmable BAS Lighting Controller
A native BACnet Building Controller (B-BC) that provides full GCL+ programmability and real-time automation for lighting applications.
High-Performance Networking & Communication
Delivers BACnet/IP, BACnet/SC, BACnet MS/TP, and LINKnet support with dual Ethernet ports for network flexibility and secure system integration.
Modular, Scalable Lighting Architecture
Supports up to 4 local modules and 12 remote modules—or up to 8 O3-HUB devices—for easy expansion and adaptable lighting system design.
Built-In Diagnostics & Network Visibility
Provides advanced fault detection, onboard LED indicators, and remote firmware/database management to simplify commissioning and ongoing maintenance.

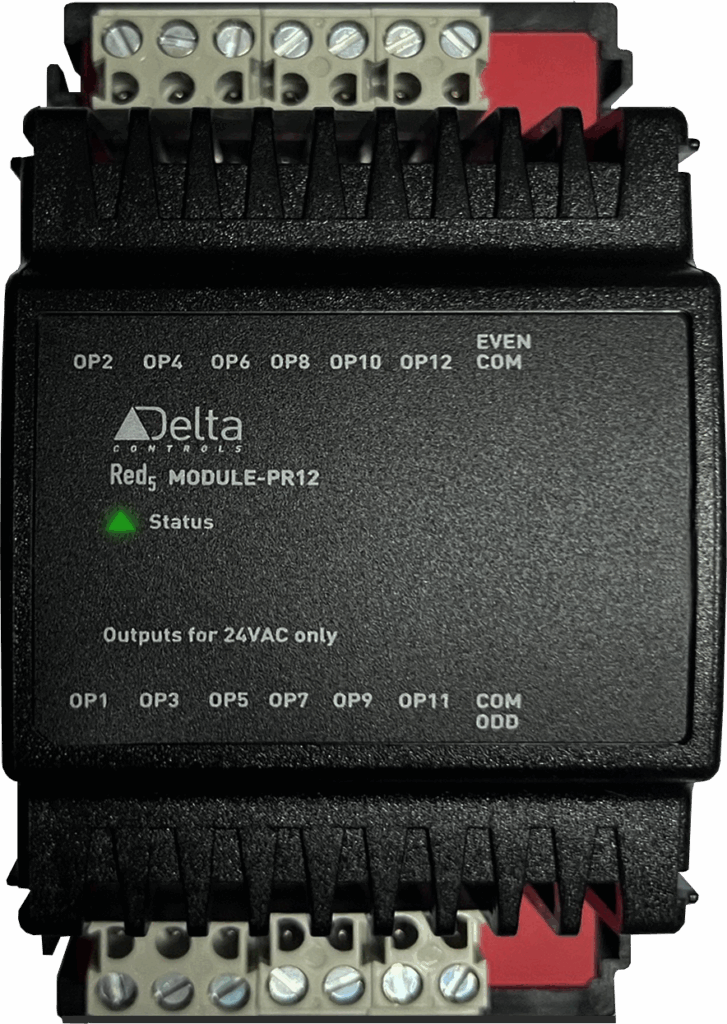

The Red5-MODULE-PR12 connects directly to the Red5-EDGE-LIGHT-RELAY to switch 12 Panasonic-style 2-wire relays, providing simple, reliable on/off control for centralized relay cabinets. Its built-in monitoring detects Fault and Not Present conditions for improved visibility, while its modular DIN-rail design enables fast installation and clean expansion. Typically, three PR-12 modules support a standard 36-relay cabinet.
