Winner of the AHR Expo Innovation Award in Building Automation:

O3
Sense and Edge

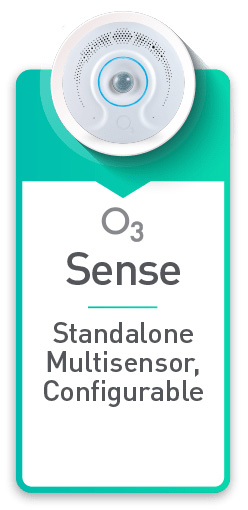

O3 Sense Standalone Multisensor, Configurable Graphic

Safe, No-Touch Environments by Design

The O3 Creates a New Touchless World, With Less Risk of Contagion

  • Installed on your ceiling
  • Integrates with the touchless apps your occupants already use
  • No internet needed, wirelessly connects to your phone
  • Control lighting, fresh air, and temperature

The Occupent Experience

Experience the Best Room Control on the Market

With advanced temperature sensing, the O3 provides a more comfortable environment for you and your staff. The O3 reacts to changes in temperature and people entering and leaving a space faster than any other sensor on the market.

You have a beautiful space, stop covering it in plastic!

Sleek, smart, and efficient, the O3 is designed to complement a room, not distract from it. Installed on the ceiling, the O3 provides the best vantage point for better control and better detection, without cluttering your walls.

Energy Savings

With seven different sensors onboard, the O3 utilizes Sensor Fusion to enhance occupancy detection and temperature reading. The O3 reacts fast when you leave the room—turning off lights, reducing heating and ventilation, saving you money.

Out of the Box

The O3 can be Configured Out of the Box with Just a Smartphone.

Wirelessly configure your O3 from your smartphone using the Proviso app, no internet needed.

Technical Information

Temperature Sensors

Composite temperature value
± 0.5°C (± 1.0°F) typical with calibration

  • Digital temperature senso
  • ± 0.5°C (± 1.0°F)
  • Infrared temperature sensor ±  1.0°C (± 1.8°F) typical

Humidity Sensor

Accuracy ± 3% for 20% to 80% RH @ 15°C to 30°C (59°F to 86°F)

Motion Sensor

Passive infrared (PIR) motion sensor

Motion sensing range:

  • 9.1 m (30 ft) diameter @ 4.6 m (15 ft) mounting height
  • 5.5 m (18 ft) diameter @ 2.4 m (8 ft) mounting height

Light Sensor

± (6 + 5% reading) lx

Audio Input

2 microphones for acoustic occupancy detection

LED Ring

Full color ring with 12 RGB LEDs

Universal Points (O3 Edge)

Up to 2 inputs (16-bit), software configurable for the following types:
  • 0–5 VDC
  • 0–10 VDC
  • 10 kΩ thermistor
  • Dry contact (using 10 kΩ thermistor software setting)
  • 4–20 mA (using external 250 Ω resistor on 0–5 V setting)

Up to 2 outputs (12-bit), software configurable for the following types:

  • 0–10 V @ 20 mA max (sourcing)
  • 1–10 V @ 10 mA max (sinking)

Audio Output

1.0 W mono speaker for tones and audio output

Connectors

Removable screw-type terminal connectors
Wiring Class
Class 2 / SELV

Power

24 VDC (20–28 VDC), 2 W typical,
9 W max (O3 Sense) or 10 W max (O3Edge), Class 2

Technology

Arm® Cortex®-A7 MPU + Cortex-M4 MCU 256 DDR3L RAM
4 GB eMMC flash memory
Real-time clock (RTC)
Supercapacitor power backup for RTC
Communication Ports
Dual Ethernet (10/100Base-T)

Interfaces and Protocols

BACnet (BACnet/IP, BACnet/Ethernet) MQTT
BLE 5.0

Ambient Rating

0°C to 45°C (32°F to 113°F)
10% to 95% RH (non-condensing)

Dimensions

180 × 41.5 mm (7.1 × 1.6 in.)

Weight

350 g (0.77 lb)

Compliance

CE
FCC/IC
NCC (in progress)

Listings

C-UL Listed
UL 916 Listed

Ordering the O3 Sense using the following product Number:

03 - SENSE - 00

Multisensor (temperature, humidity, light, motion), Bluetooth, LED ring, microphone and speaker, with mounting plate

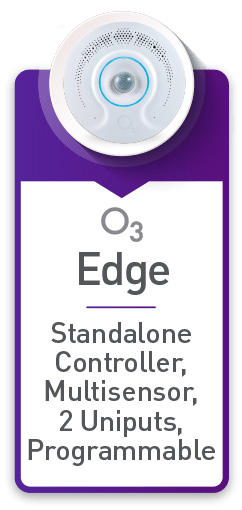

Ordering the O3 EDGE using the following product Number:

03 - EDGE- 02

Multisensor (temperature, humidity, light, motion), Bluetooth, LED ring, microphone and speaker, 2 universal I/O, input (0-10 V, 0-5 V, 10kΩ) or output (20mA source, 10mA sink), with mounting plate
